Digital System

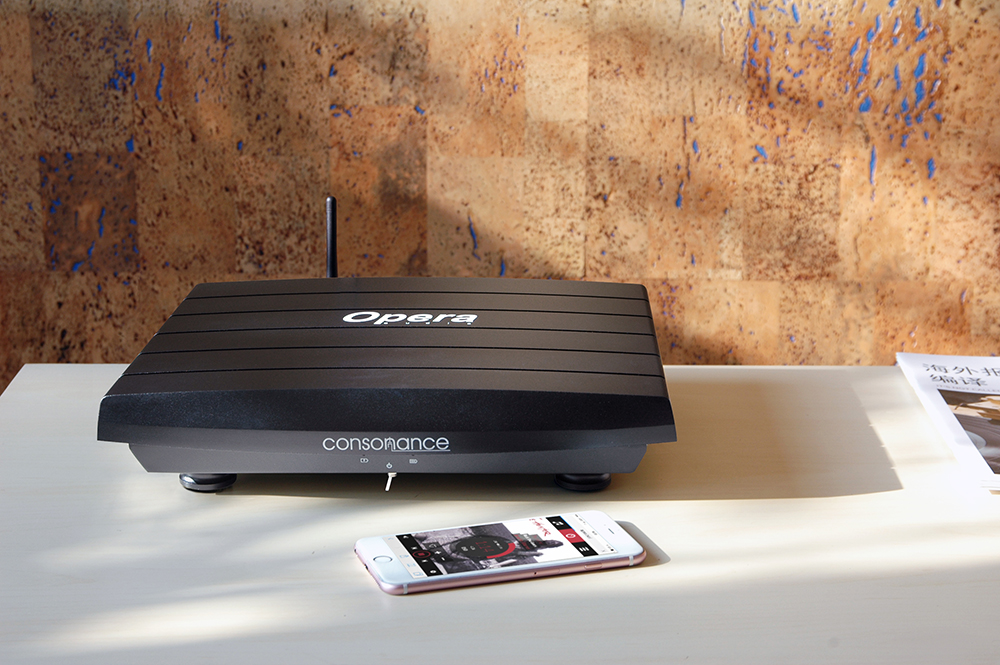

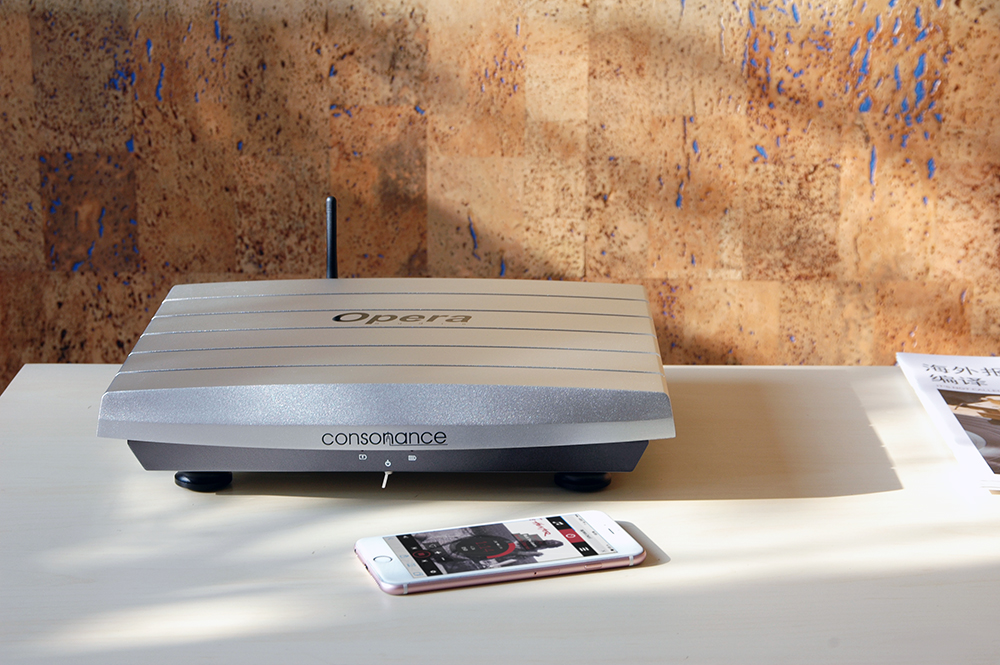

Reference DS1 Streaming Transporter
Music Streamer

d/a convertor
CD player

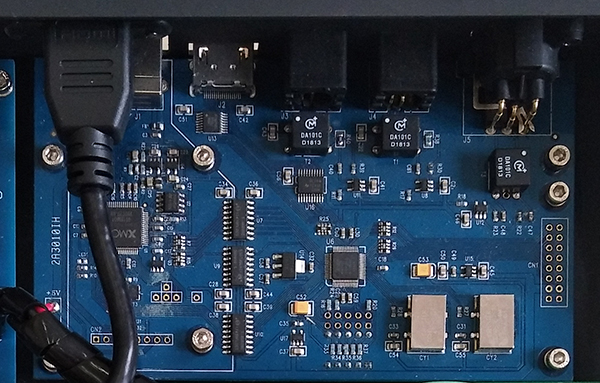

For requests from existing high-end DAC owners, Ref DS1 model developed specifically for digital processing and output. It is an Network Bridge and Streaming Transporter designed with 3 key pricinples in mind: ease of use, universal compatibility with music sources and sound quality. It used ARM RK3288 1.8GHz quad core CPUs make more higher ability and performance of the processing and the high definition audio playback. Control Ref DS1 thanks to its slick Web-based control interface. Use it with any browser, with any device: Mac, PC, Android, iOS or anything with a browser. Everything from configuration to Playback is just a fingertip away.



Advantage

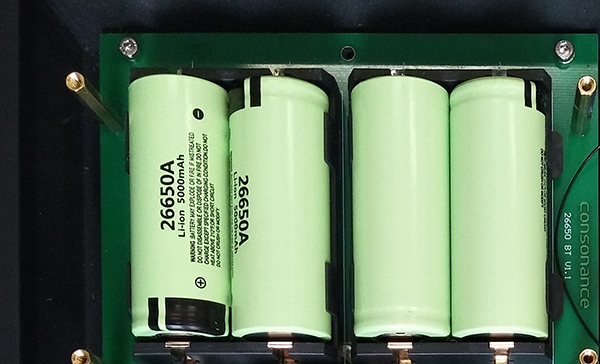

1. Powered by a lithium battery. Automatic charging and perfect protection.

2. Five types of digital audio outputs including USB, I2S, AES, BNC and SPDIF.



3. Includes DSD512 22.5MHz 1bit playback and PCM 44.1C768kHz 16C32bit.
4. Upsampling and downsampling to every supported format. Supports DoP (DSD over PCM) for Coaxial RCA, Coaxial BNC & AES/EUB SPDIF.
5. Native support for TIDAL, Qobuz, Web radio giving you access to tens of millions of songs.


Specifications
USB output: 4X USB 2.0, PCM 32 bits 768kHz, DSD512

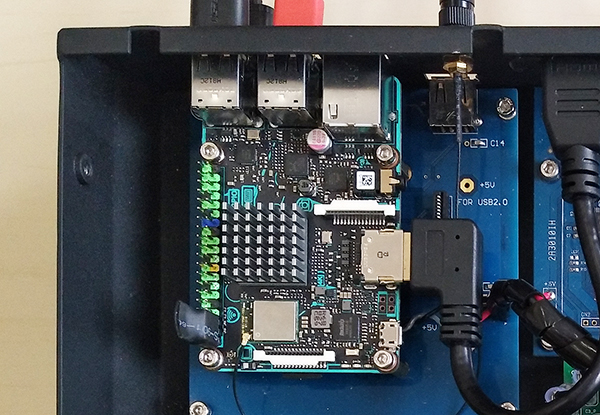

CPU: Quad core 1.8 GHz ARM Cortex-A17 with passive heatsink
RAM: 2GB
Internal Memory: 16GB Emmc
Video Output: HDMI, up to 4K resolution
LAN: Gigabit
Wireless Networking: 802.11 b/g/n Wi-Fi & Bluetooth 4.0 + EDR with External Antenna

Supported audio file formats:
DSD: DSF (DSD), DIFF (DSD)
PCM: FLAC, Apple Lossless (ALAC), WAV, AIFF, APE, MP3, AAC

Supported audio sample rates, bit depths, number of channels:
PCM, 44.1khz-384kHz, 16-32bit, Stereo DSD, 2.8MHz-22.4MHz, 1bit, Stereo

Digital inputs: USB2.0

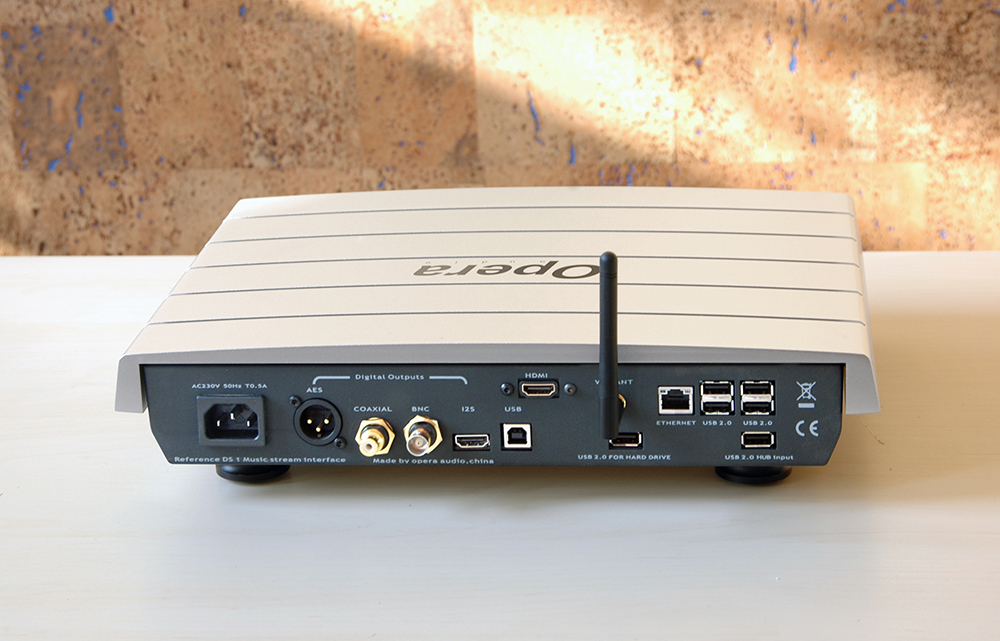

Digital output: USB, I2S, Support Dop for Coaxial, AES, BNC
Dimensions: 352 290 80mm (WDH)
Weight: 6kg

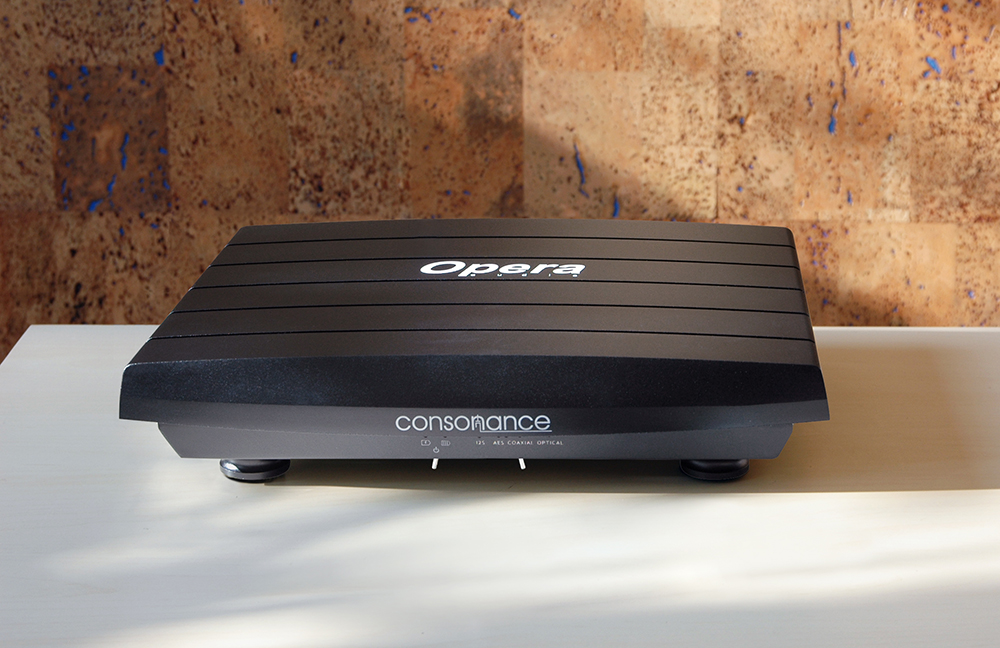

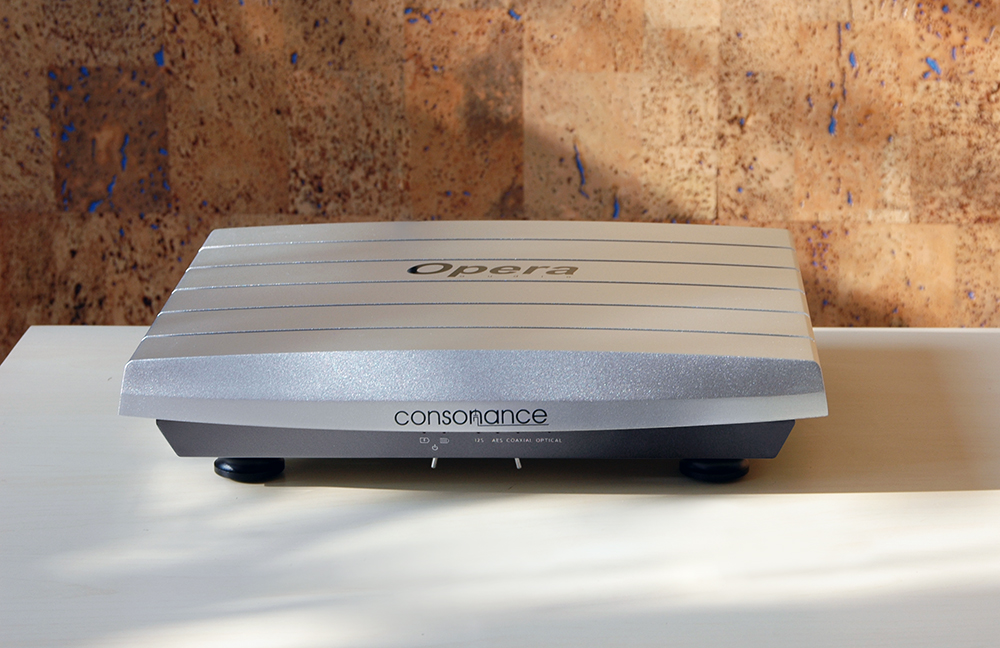

Reference DB1 Digital Convertor


Recommended Ref DB1 for use with Ref DS1.





Advantage

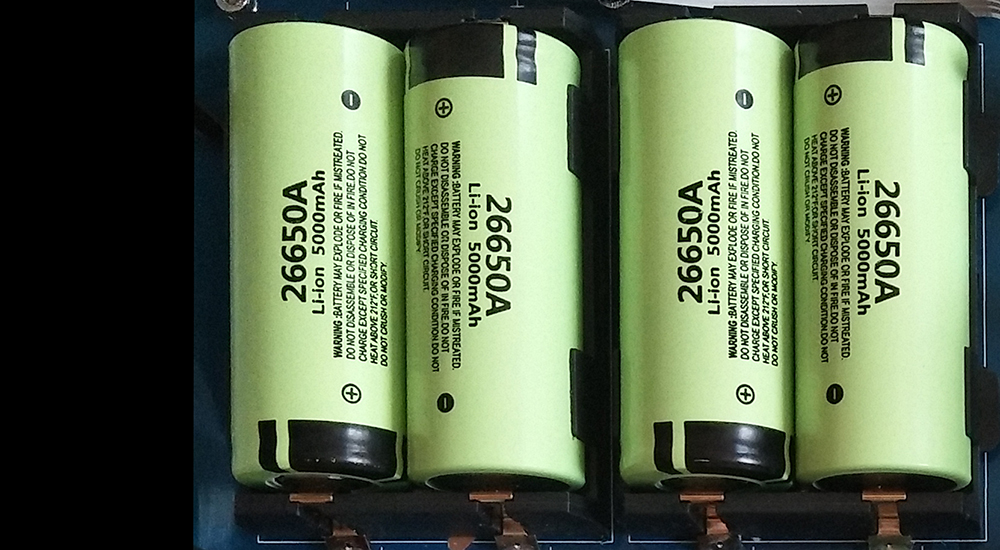

1. Powered by a lithium battery. Automatic charging and perfect protection.

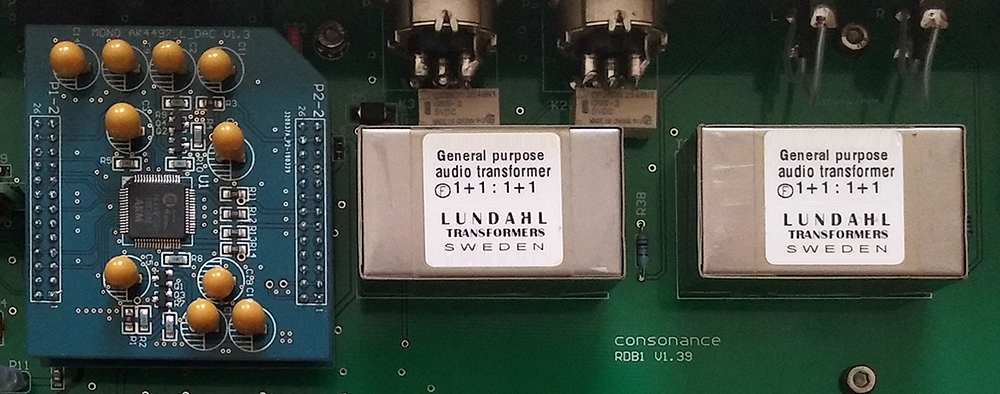

2. Dual Mono design throughout maximises channel separation. Dual AK4497 DACs featuring 140dB dynamic range.The default settings for DSD and PCM are "DSD direct" and "Low dispersion short delay". The "DSD dircet" mode can let the pure orignal DSD signal direct to outputs and the "Low dispersion short delay" of PCM digital filter can let DAC chip Close to R2R Operating mode. The DAC chip board can easy to remove and fix to do update in the future.
3. It is particularly worth mentioning that the output stage uses a Specially customized Swedish Lundahl output transformer, passive LPF processing for amazing results.



Specifications

Supported audio sample rates, bit depths, number of channels:
PCM, 44.1khz-384kHz, 16-32bit, Stereo
DSD, 2.8MHz-22.4MHz, 1bit, Stereo

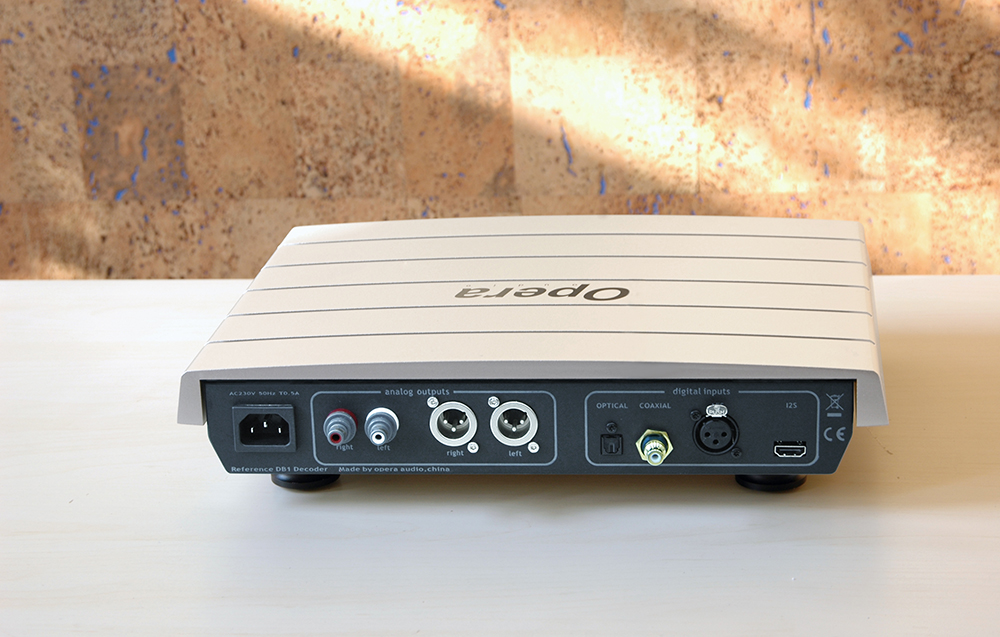

Digital inputs:
I2S, AES, Coaxial, Optical

Analog output:
unbalanced: 1.9V RMS,
Balanced: 3.9V RMS

Distortion: <0.007%
Signal noise:>115dB
Dimensions: 352 290 80mm (WDH)
Weight: 6.2kg
