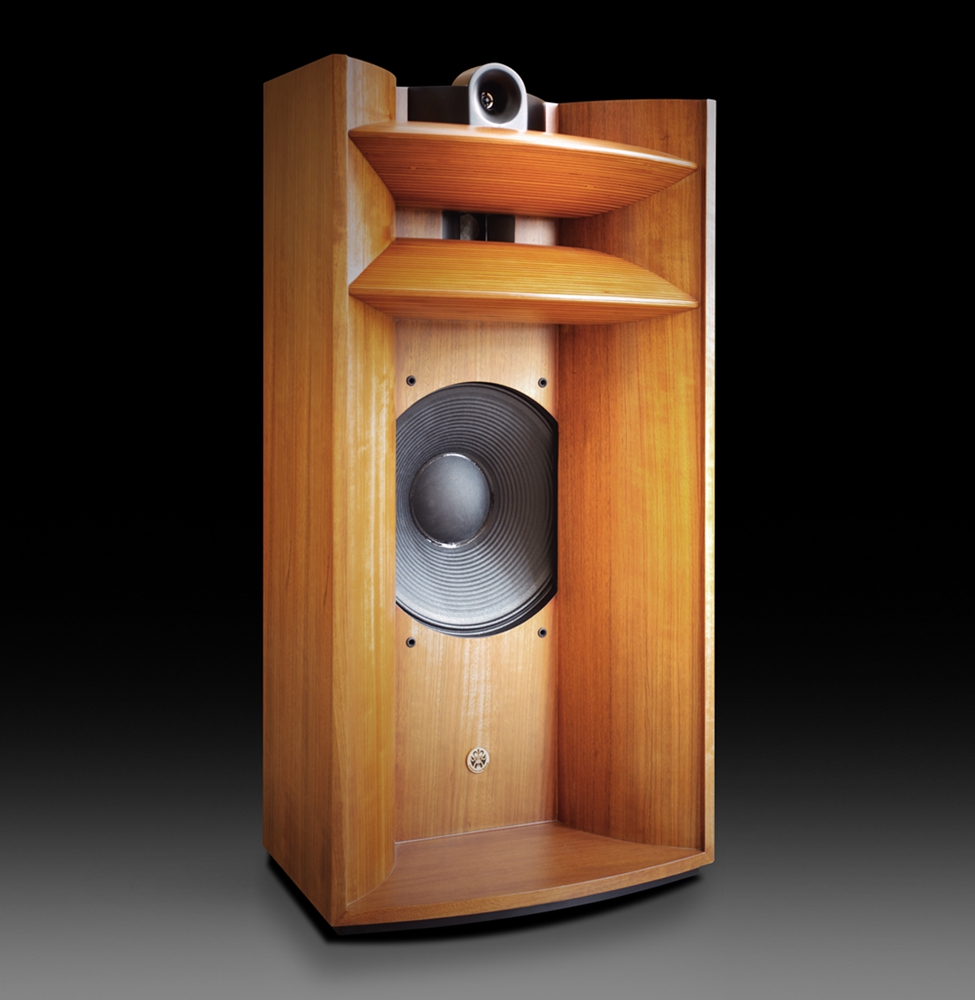

            M15-20 anniversary Horn loudspeaker |


             |

                |


            |   |


            Our M15-20 Anniversary is the M15SE modified model,  the speaker box has an inset horn,  the  bass unit is a front loaded horn, with a new super tweeter. These new features  make the speaker range much broader with the all phase frequency natural and  smooth.

              Both the speaker unit and the crossover have been  improved and upgraded, M15-20 Anniversary‘s material and design has also been  enhanced. The bass unit paper cone is made from a special nature fiber, with  high quality damping properties. The speaker coil is made of the pure OFC,  with the pure silver cable and the pure copper terminals.

              The high quality unit achieves much lower frequency and  better transient response, including affluent mid-frequency  details, the OFC high frequency driver and the improvement in the compression  drive structure makes the phase property superior, smoother with lower  distortion. As soon as the music begins, the sound will display more detail and  the sound will charm you immediately.

              With French SCR capacitors and other hi-end capacitors,  and pure copper speaker wiring, this crossover improvement, which is based on  the M15SE, makes the whole phase balance better and the range becomes broader.

              The hi-end super tweeter in M15-20 Anniversary’s sound  is affluent and detailed ,the horn speaker character is natural, realistic and  straight, the new design horn tweeter is loose, bright and   vigorous.

              The inset horn in the inverse-phase bass enclosure  provides much deeper frequencies the better sound levels and has a live sense.  |


            |   |


            Specification  |


            Frequency range: 30Hz~25kHz
              Nominal impedance: 8Ω
              Sensitivity: 98dB
              Drive units:380mm paper cone Woofer , cloth surround, aluminum diecast basket
            720mm Dome titan. compressive alt driver, rear-radiant             Horn: Normal wood or piano wood, 110 degree level extension, built-in sound divider             Cabinet: MDF plate, normal wood surface, direct reflective acoustics structure             Crossover frequency: 1000Hz             Dimensions: 1023*550*505mm(H*W*D)
            Net weight: 54kg |


            |   |
